Source factory & No middleman ！
Phenolic Molding Manufacturer
- Fx-501 and many other phenolic molding forms
- Provide free samples for you to test
- Factory Price & Large Quantity Discount
- Accept small batch sample orders
- 24 Hours Online Service
With over 20 years of experience in the fiberglass industry, China Beihai has advanced processing equipment for Phenolic Fiberglass Molding Compound.
Support all ports in China, can also be sent to your designated freight forwarder, we are one-on-one 24-hour service!
From communication to order confirmation, product production and processing and after-sales have exclusive engineers and you docking!

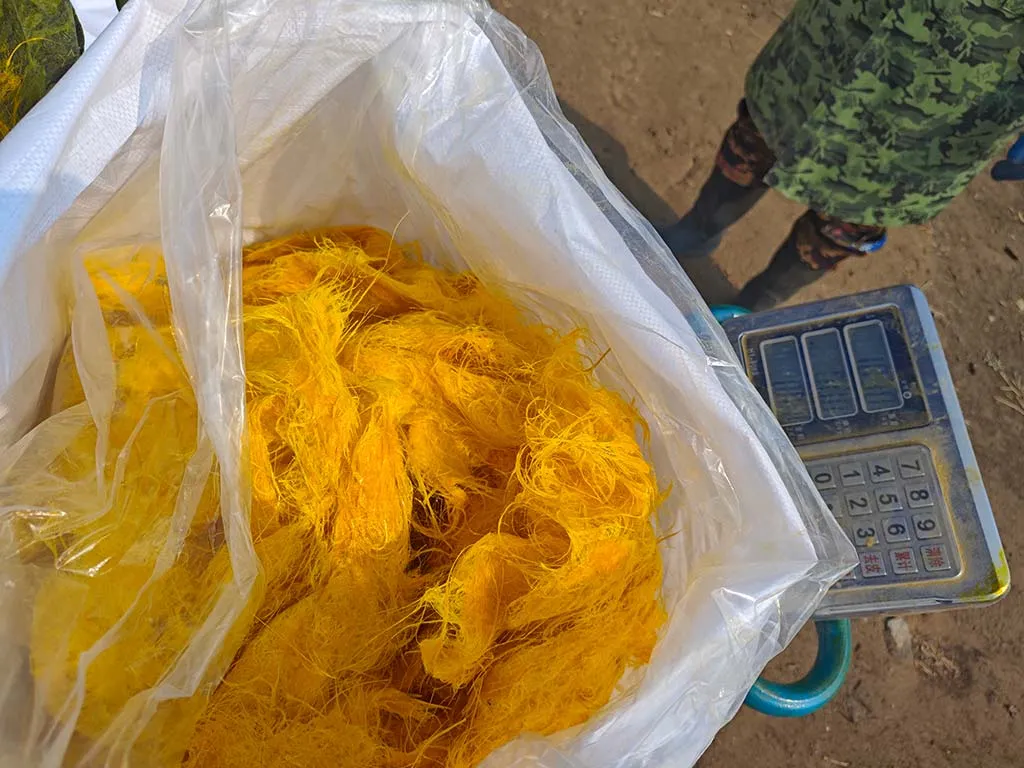

Phenolic Fiberglass Molding Compound
Our options include Press material FX501 extruded、Bulk Phenolic Fiberglass Molding Compound、Phenolic Reinforced Molding Compound 4330-3 Shunds、Press material AG-4V extruded 4330-4 Blocks、Moulding material (Press material) DSV-2O BH4300-5、Granular Phenolic Glass Fiber Molding Compound BH4330-6

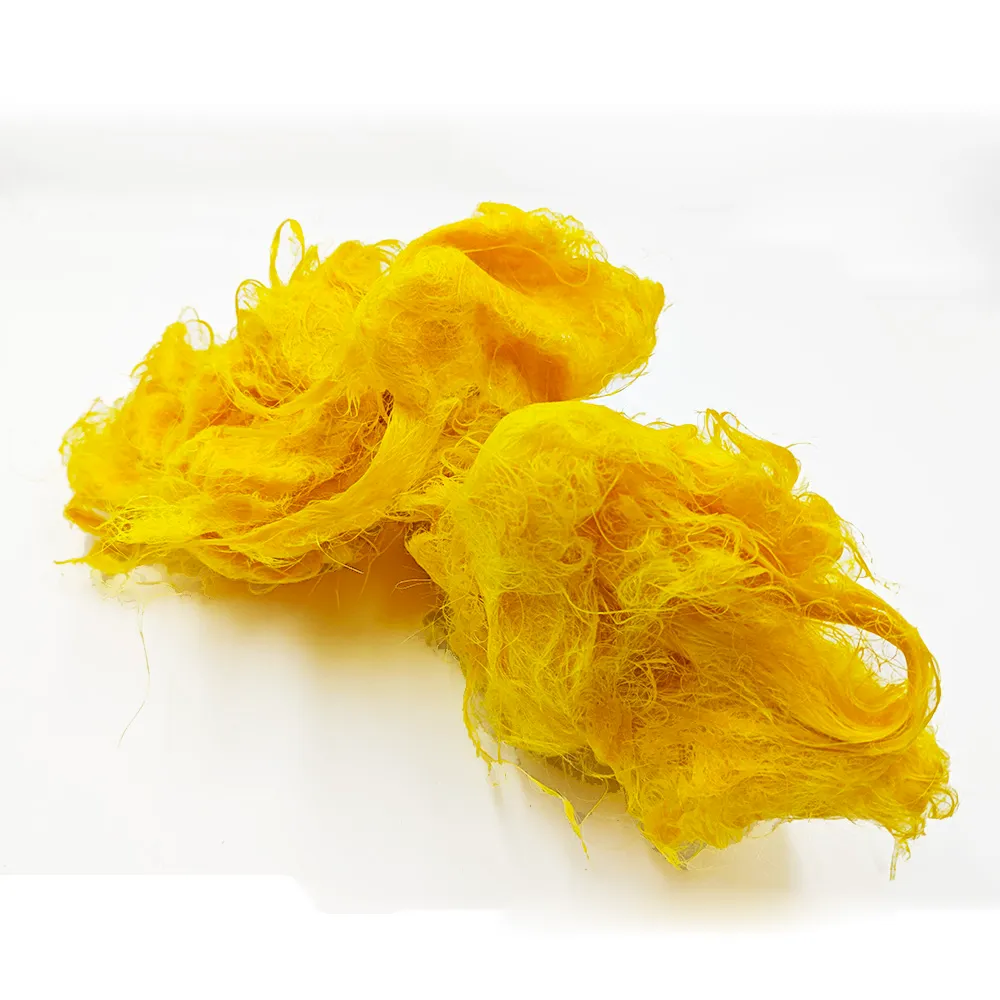

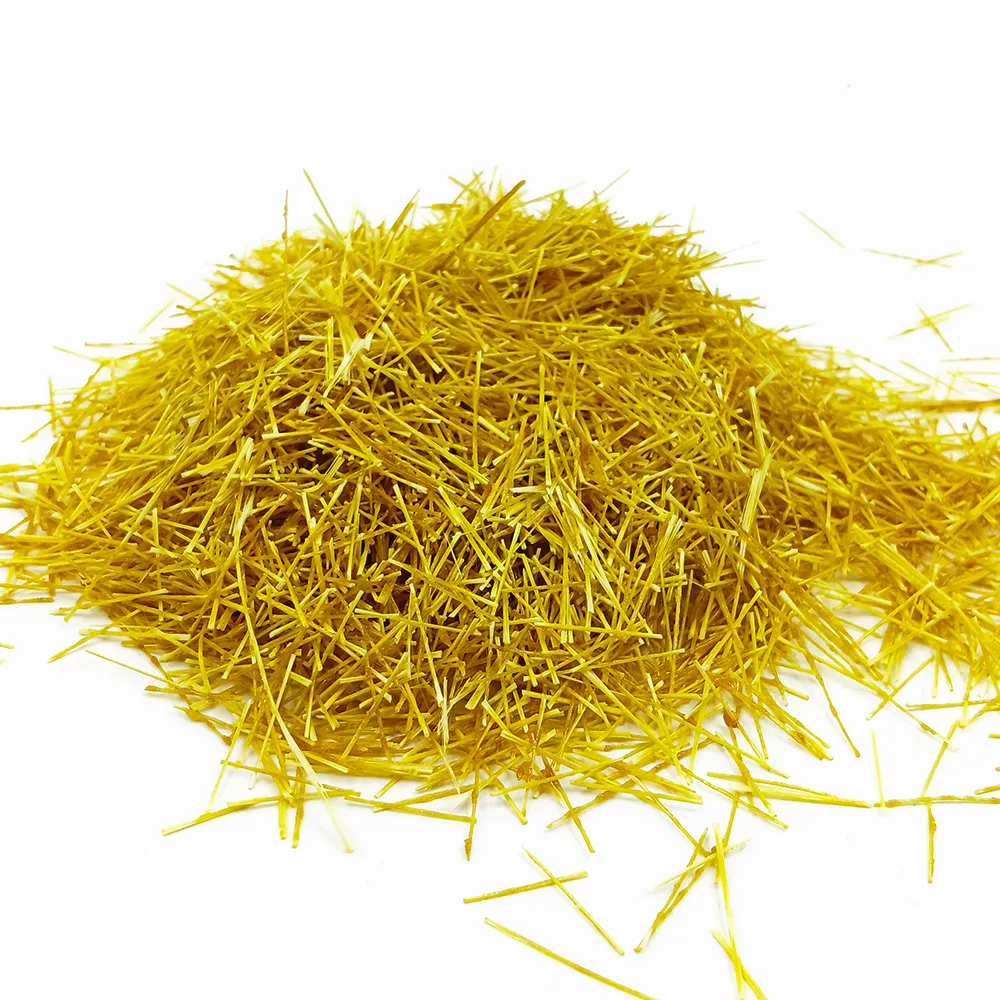

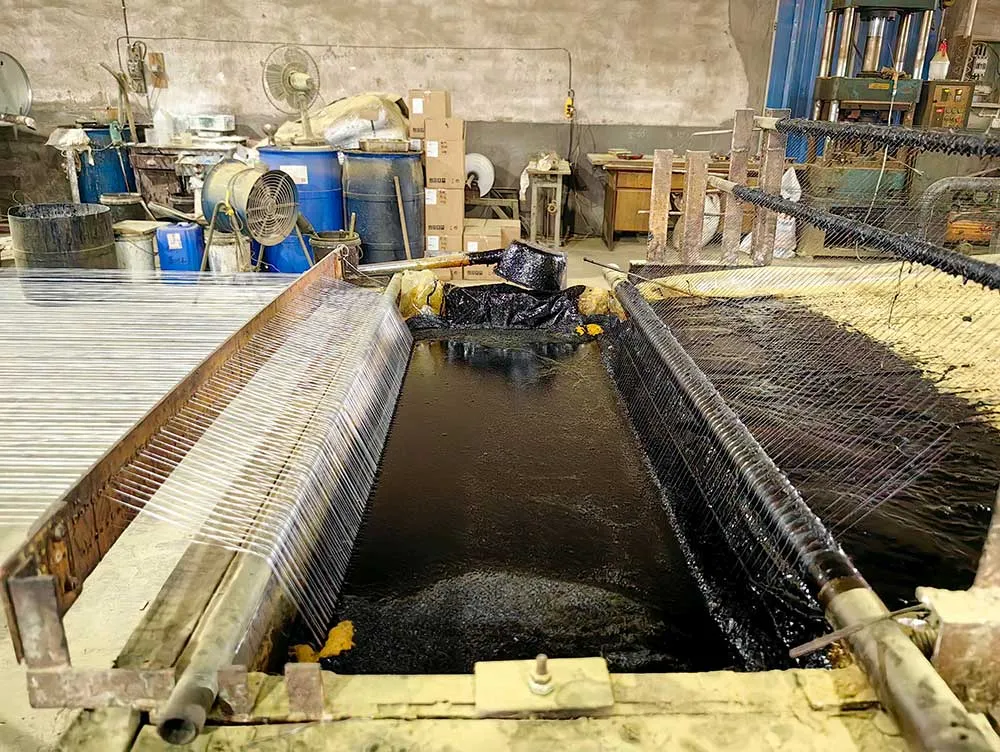

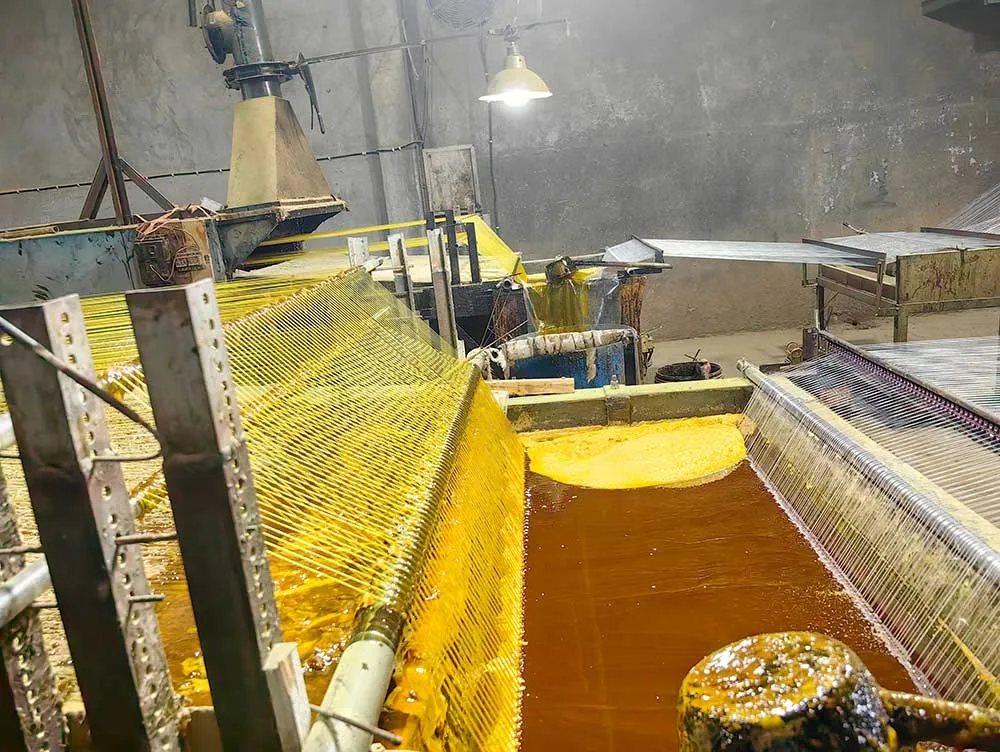

This material is made of improved phenolic resin impregnated with alkali-free glass yarn, suitable for use as raw material for thermoforming products.
- Density (g/cm³):1.60~1.85
- Surface Resistivity (Ω) :≥1×10¹²
- Bending strength (MPa):≥130~790
- Dielectric loss factor (1MHz): ≤0.03~0.04
- Water absorption (mg):≤20

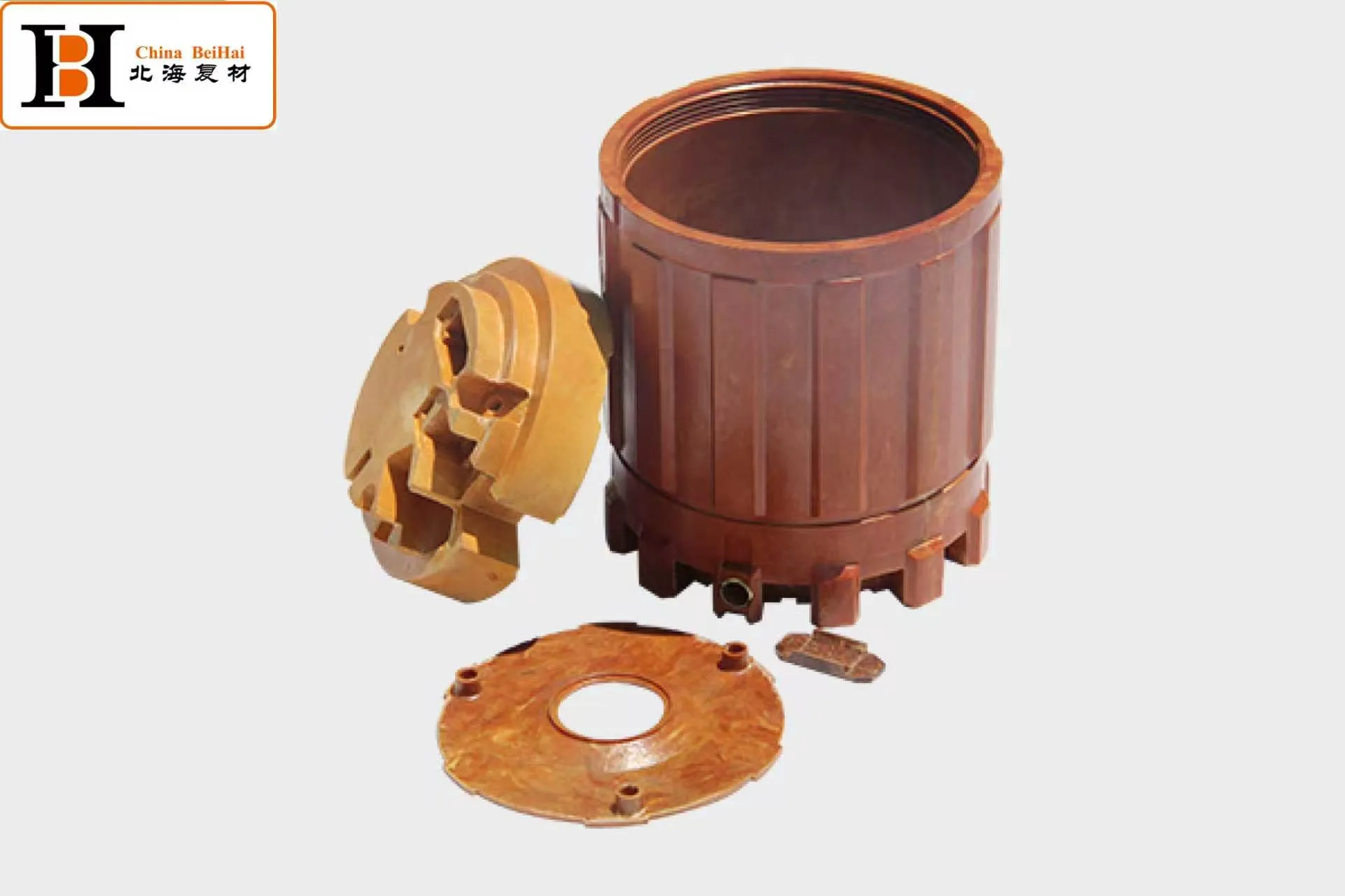

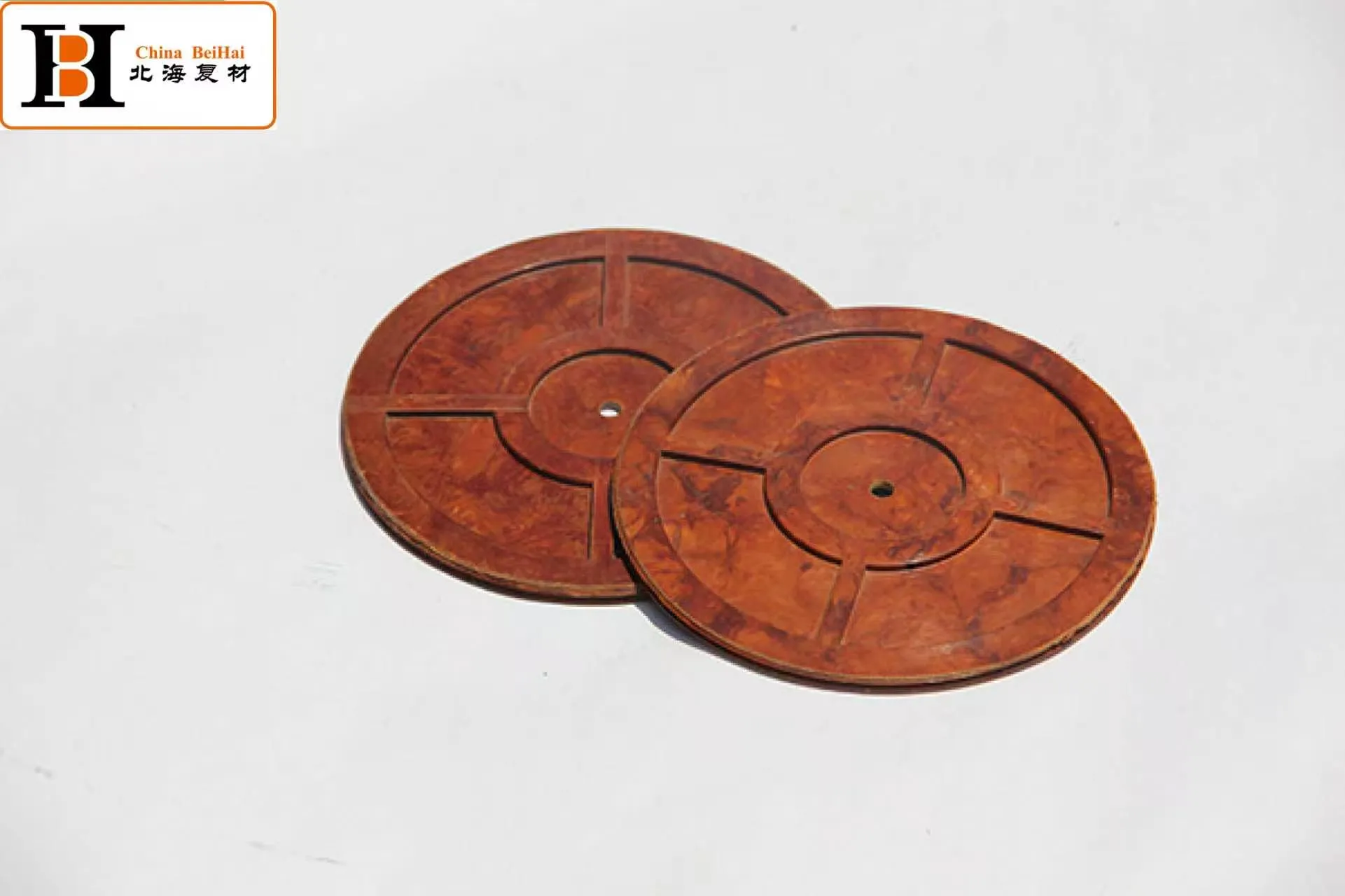

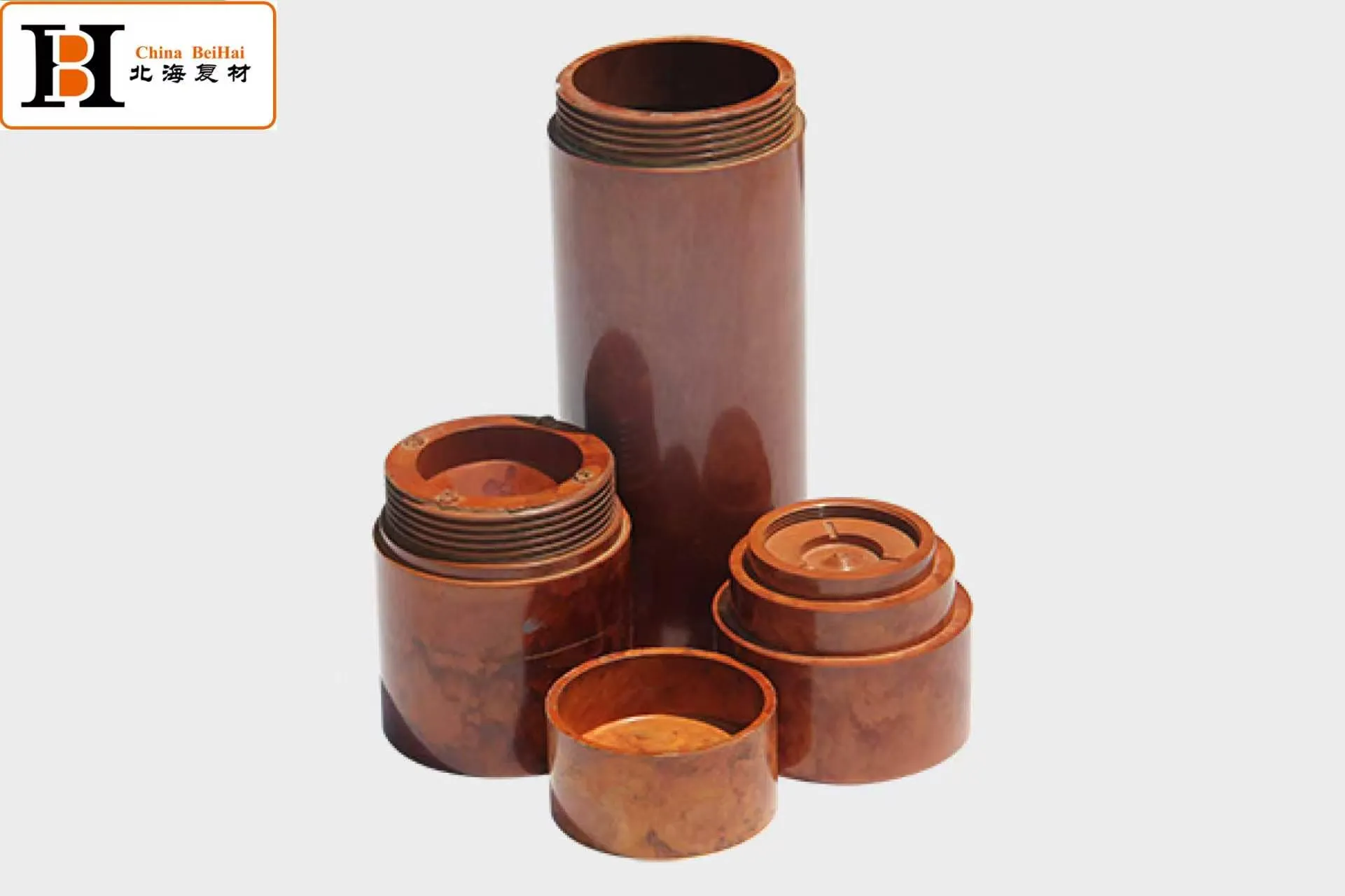

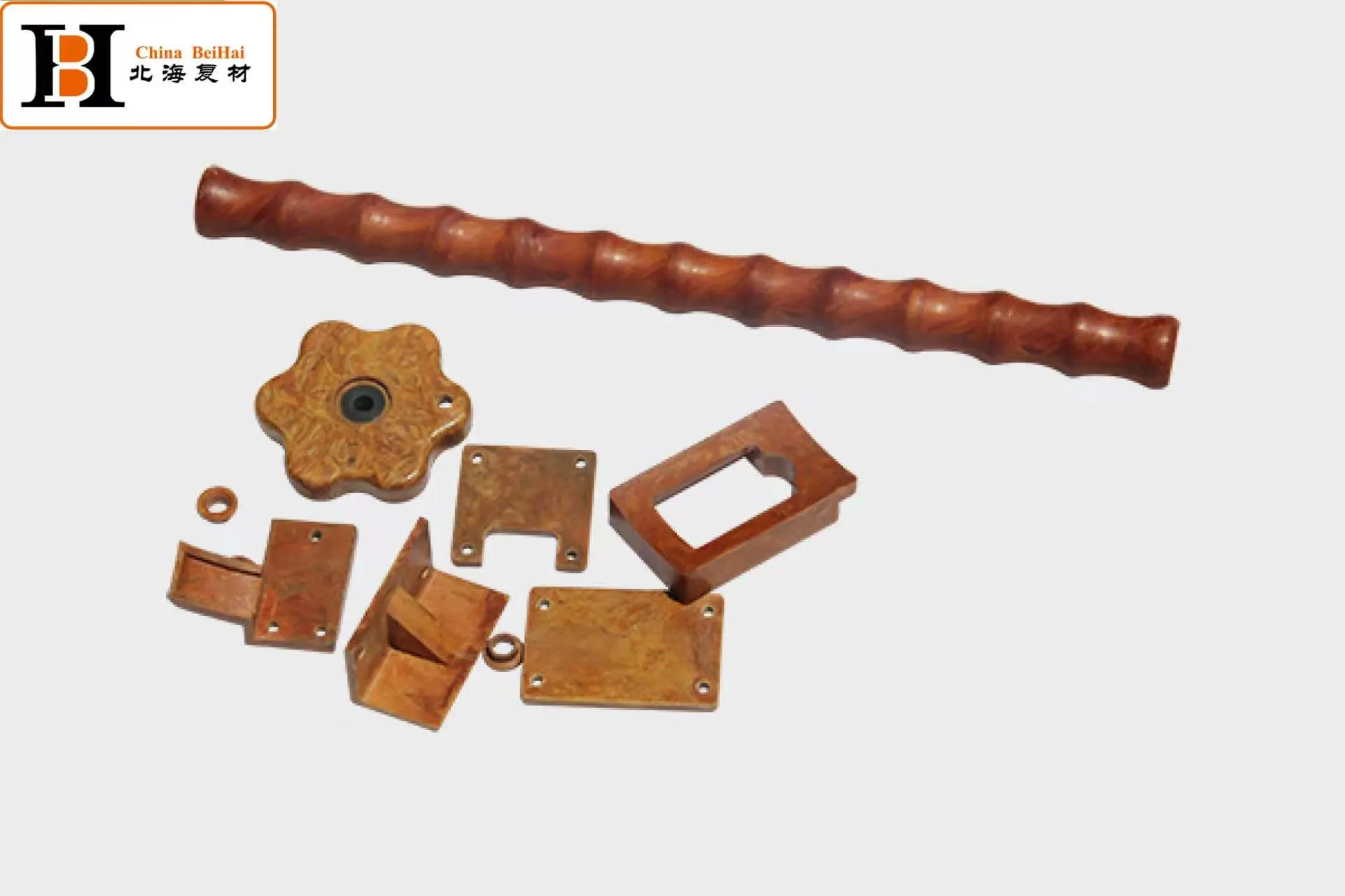

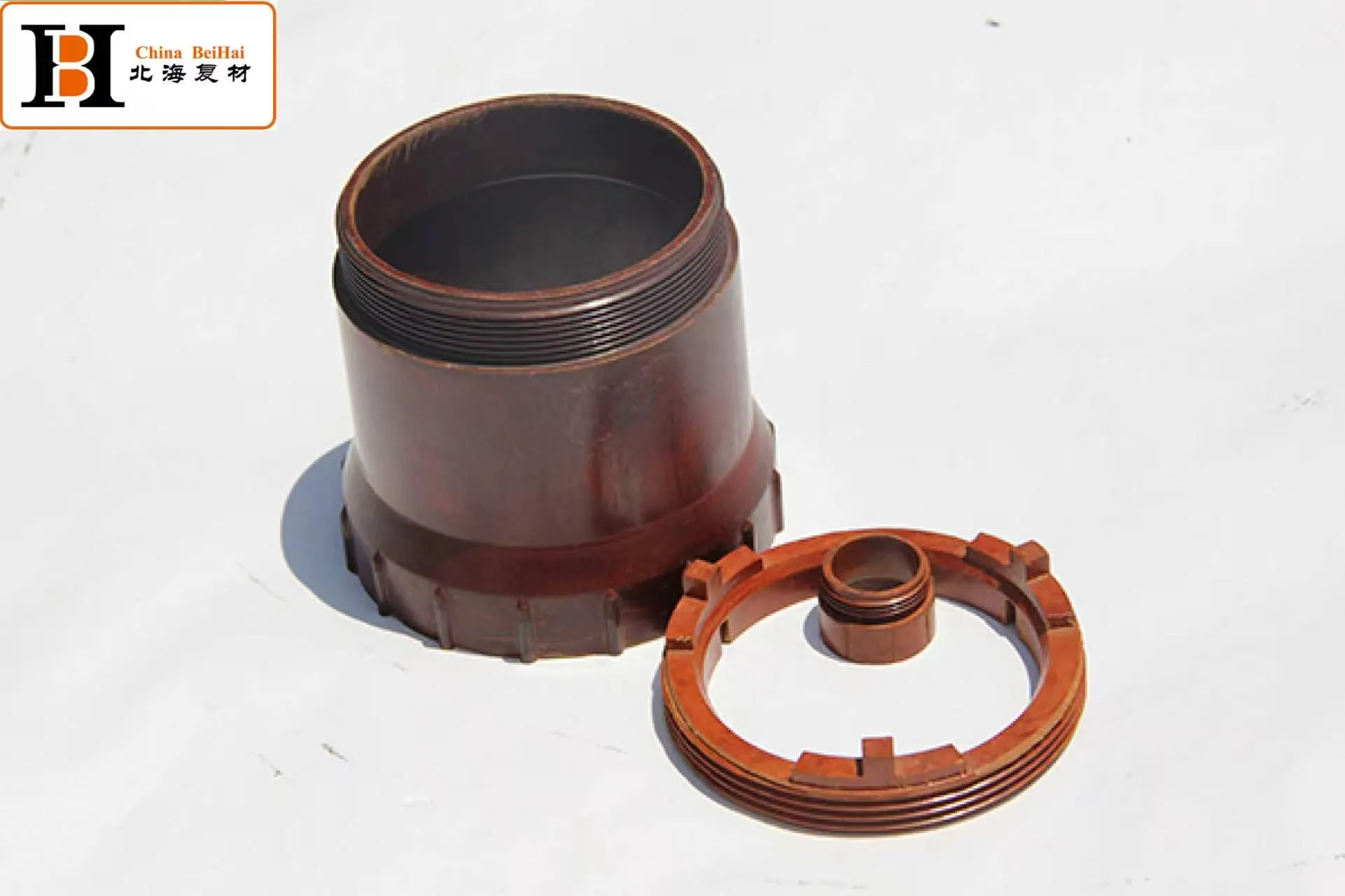

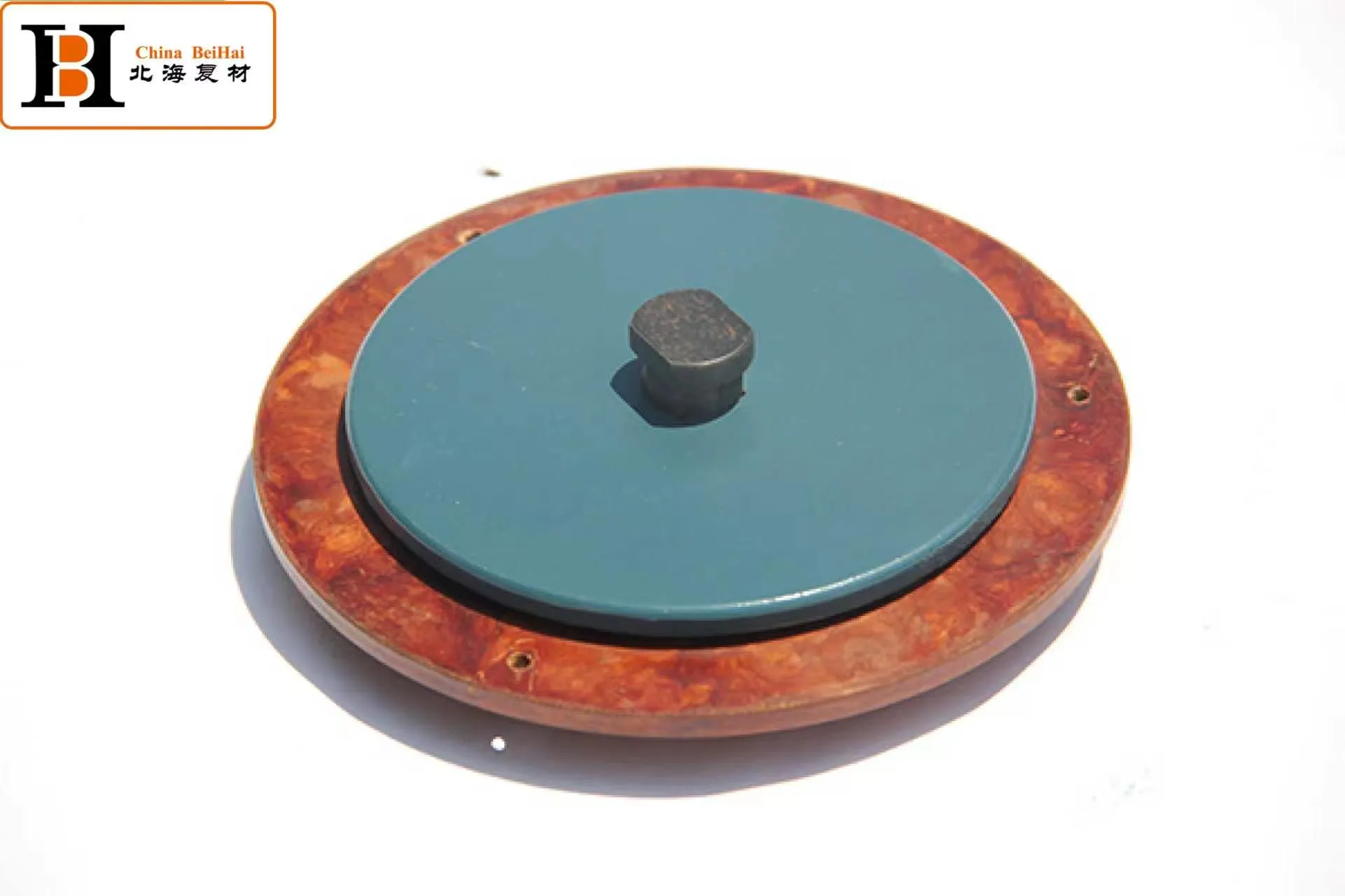

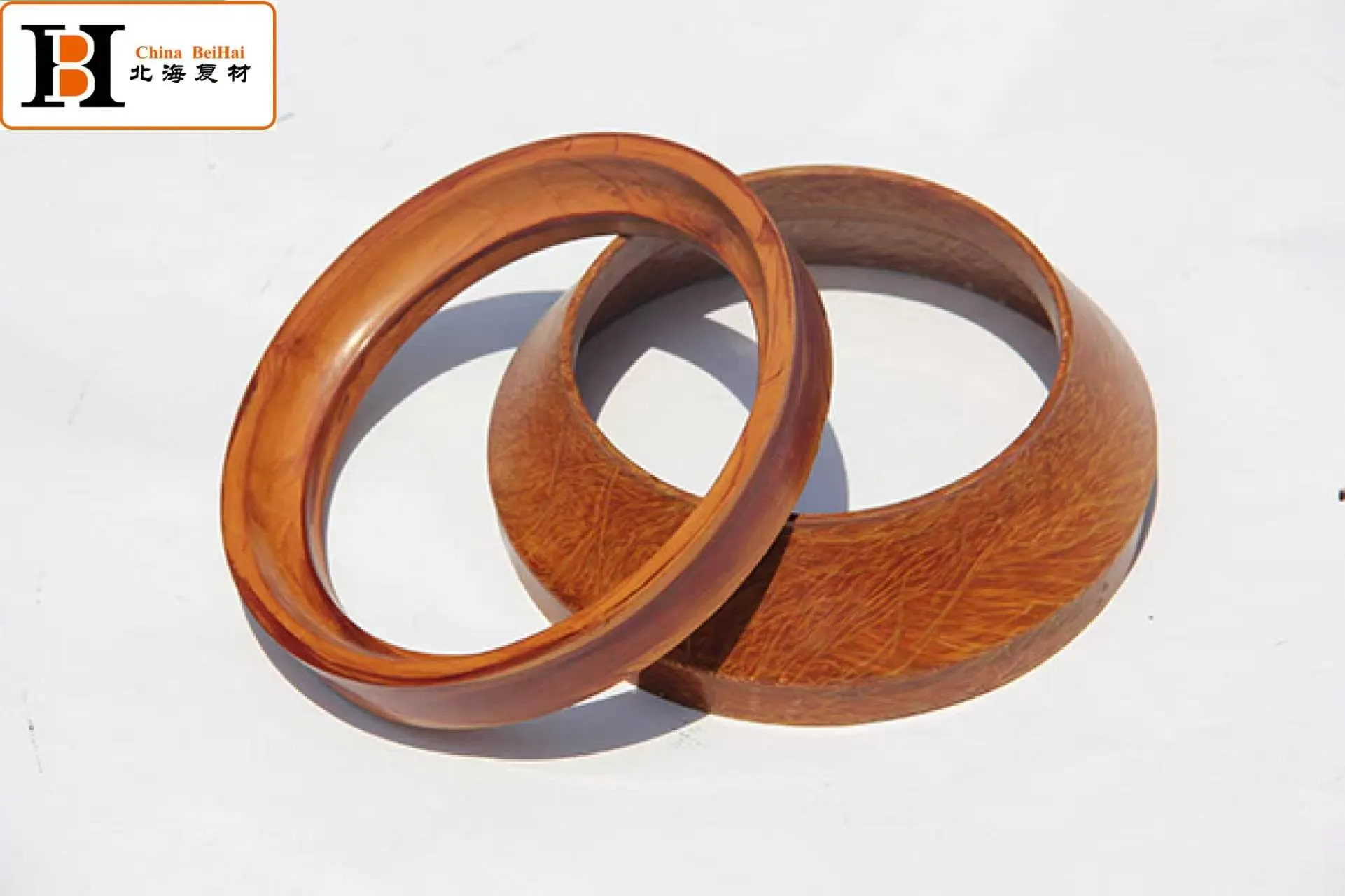

FX501 phenolic molded plastic use: It is suitable for pressing insulating structural parts with high mechanical strength, anticorrosive and moisture-resistant.
- bending strength:≥130-790 MPa
- impact strength:≥45-239 kJ/m²
- tensile strength:≥80-150 MPa
- Martin heat-resistant:≥280℃, stable performance under high temperature
- Density:1.60-1.85 g/cm³ (lightweight and high strength)
The product is mainly used for molding, power generation, railroads, aviation, and other dual-use industries.
- Dielectric Strength:≧16.0 MV/m
- Relative Permittivity (1MHZ):≦7
- Water Absorption:≦0.2%
- Martin Temperature:≧280℃
- Resin Content:Negotiable

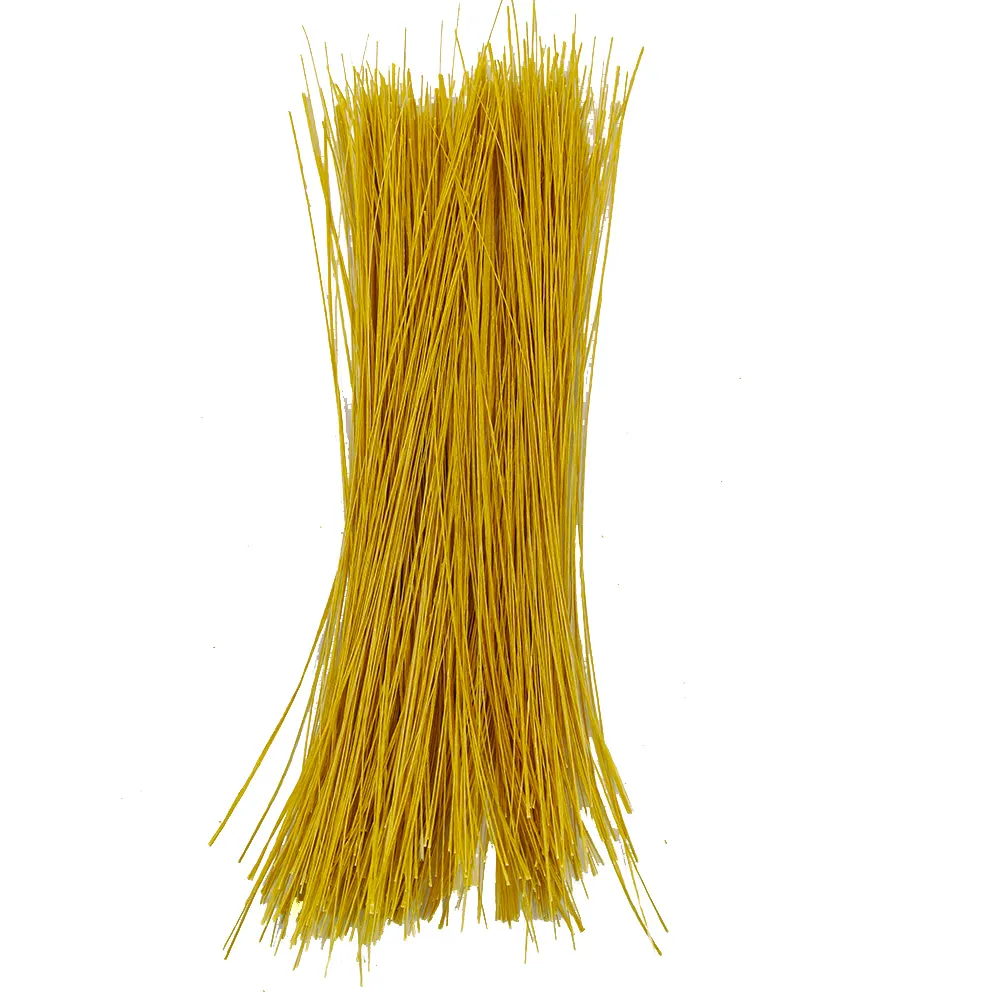

Press material AG-4V extruded, diameter 50-52 mm., is made on the basis of modified phenol-formaldehyde resin as a binder and glass threads as a filler.
- Model::4330-4(FX501)yellow color
- Bending Strength:≧160Mpa
- Density:1.65-1.85g/cm³
- Combustibility:FV0 Grade
- Volatile Matter Content:3.0-6.0%

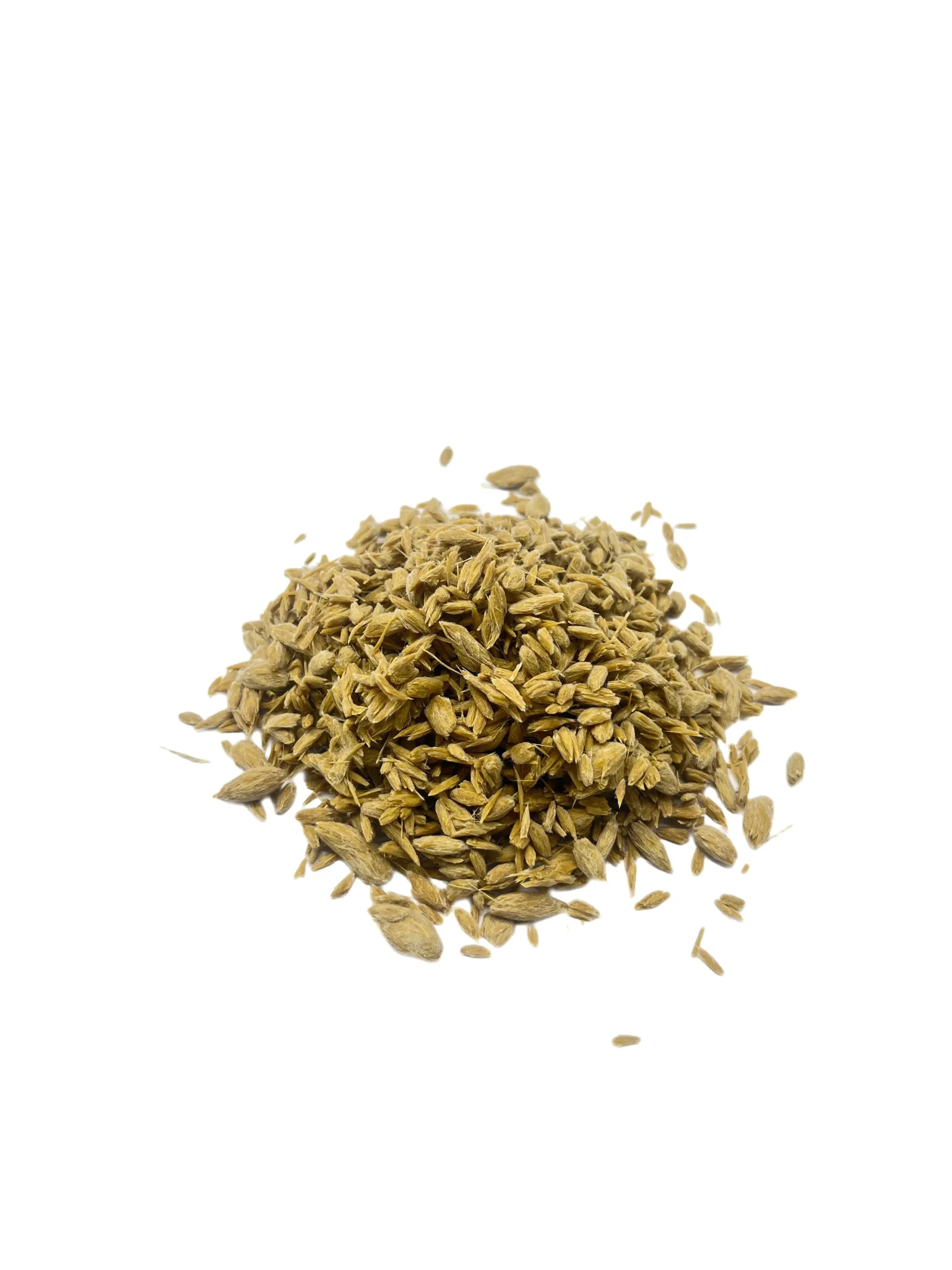

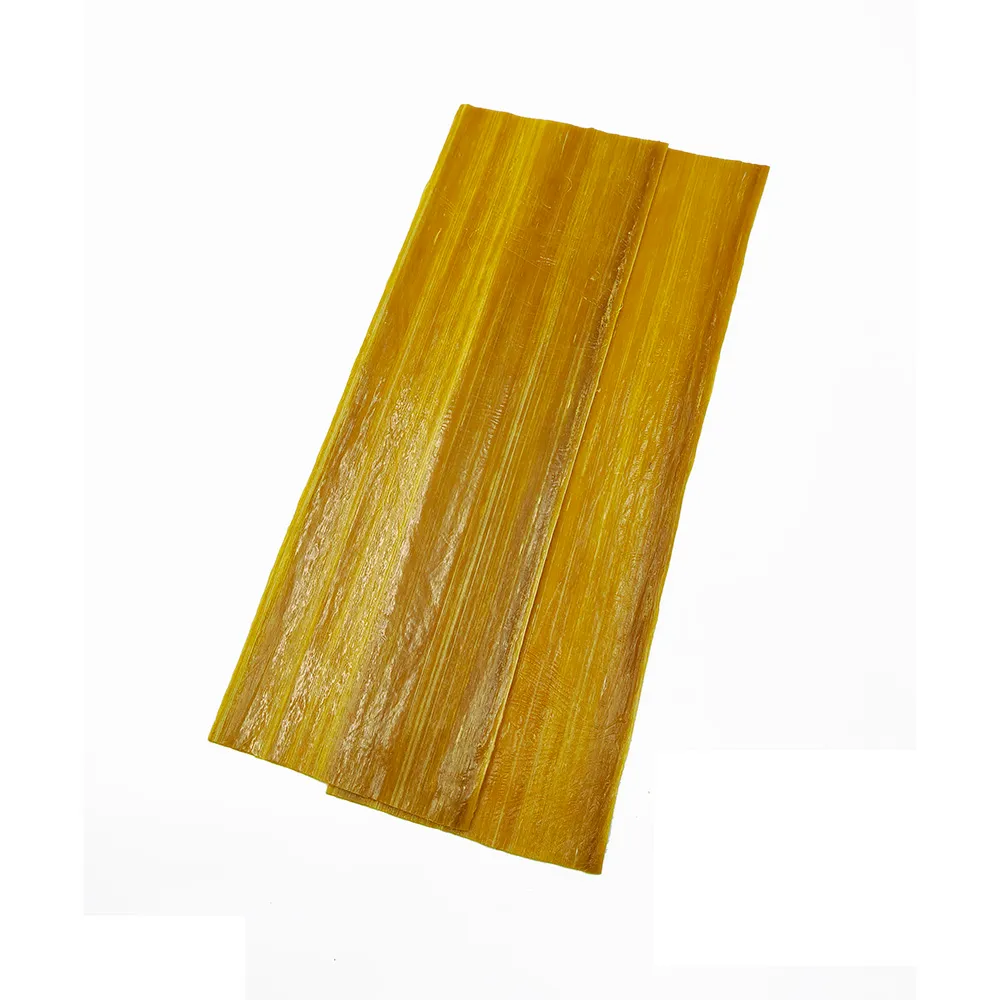

DSV press material is a type of glass-filled press materials made in the form of granules on the basis of complex glass filaments
- Grades:FX501
- Dielectric Strength:≧14.0MV/m
- Impact Strength:≧50KJ/m²
- Medium wearing factor (1MHz):≦0.04
- Relative Permittivity (1MHZ):≦7
The reinforced plastic components molded from this product feature high strength, high-temperature resistance, and corrosion resistance, making them suitable for aerospace, chemical, and military applications.
- Water Absorption：≦20mg
- Martin Temperature:≧280℃
- Impact Strength:≧50KJ/m²
- Tensile Strength:≧80Mpa
- Relative Permittivity (1MHZ):≦7

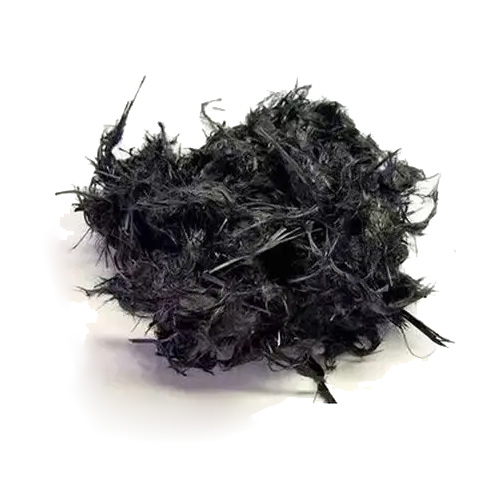

The product is made of carbon fiber and phenolic resin, theoretically possessing super high performance. The specific parameters are still being tested.
- Testing
- Testing
- Testing
- Testing
- Testing

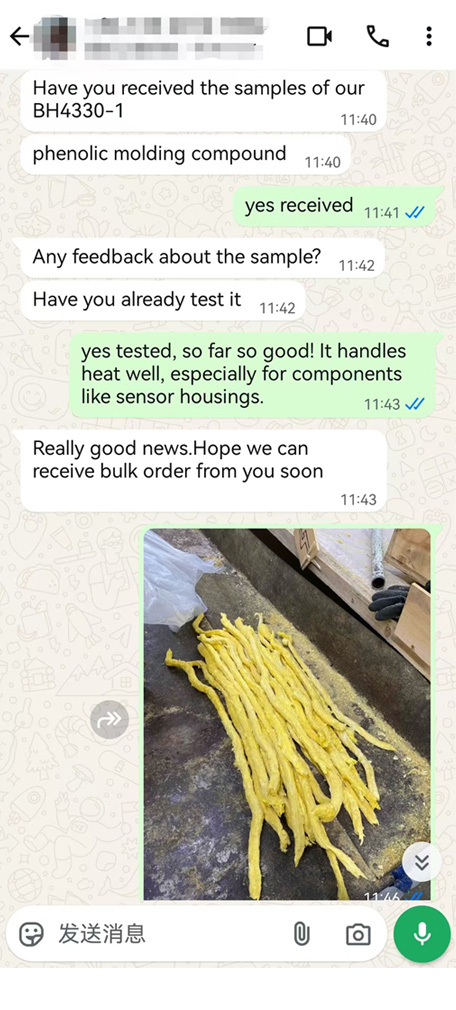

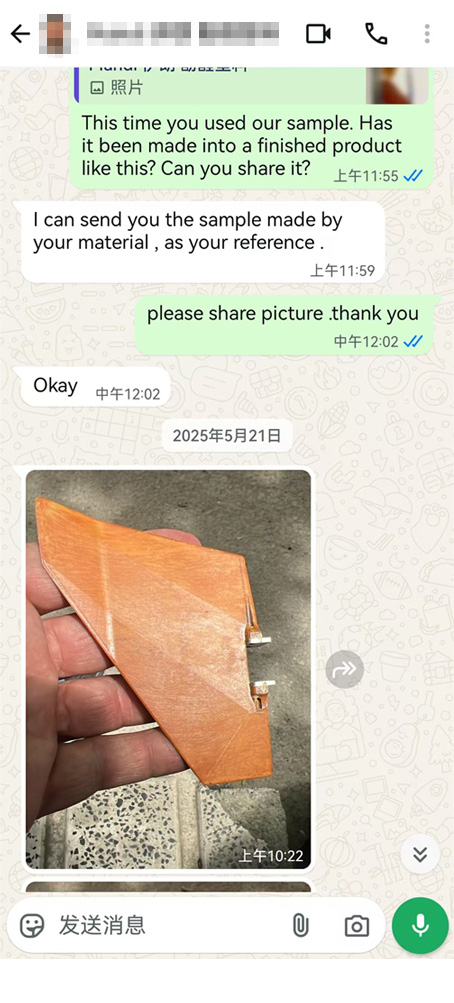

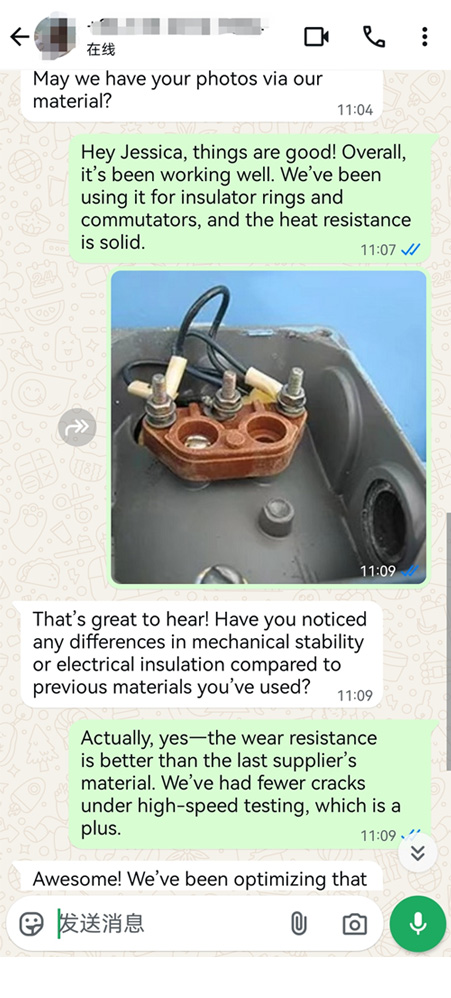

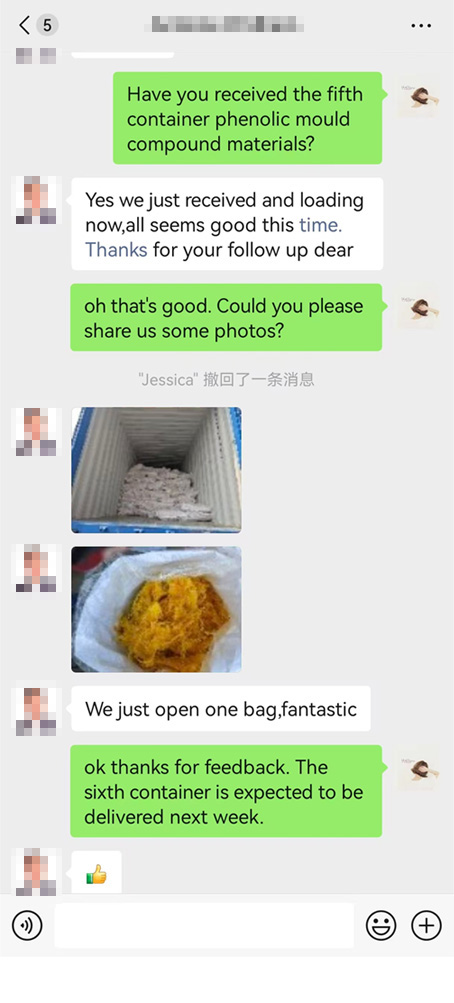

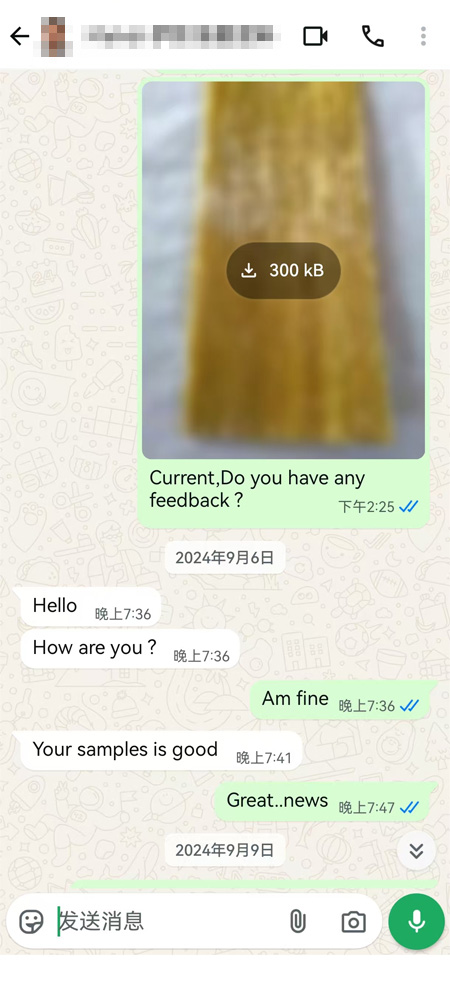

Real Customer Testimonials

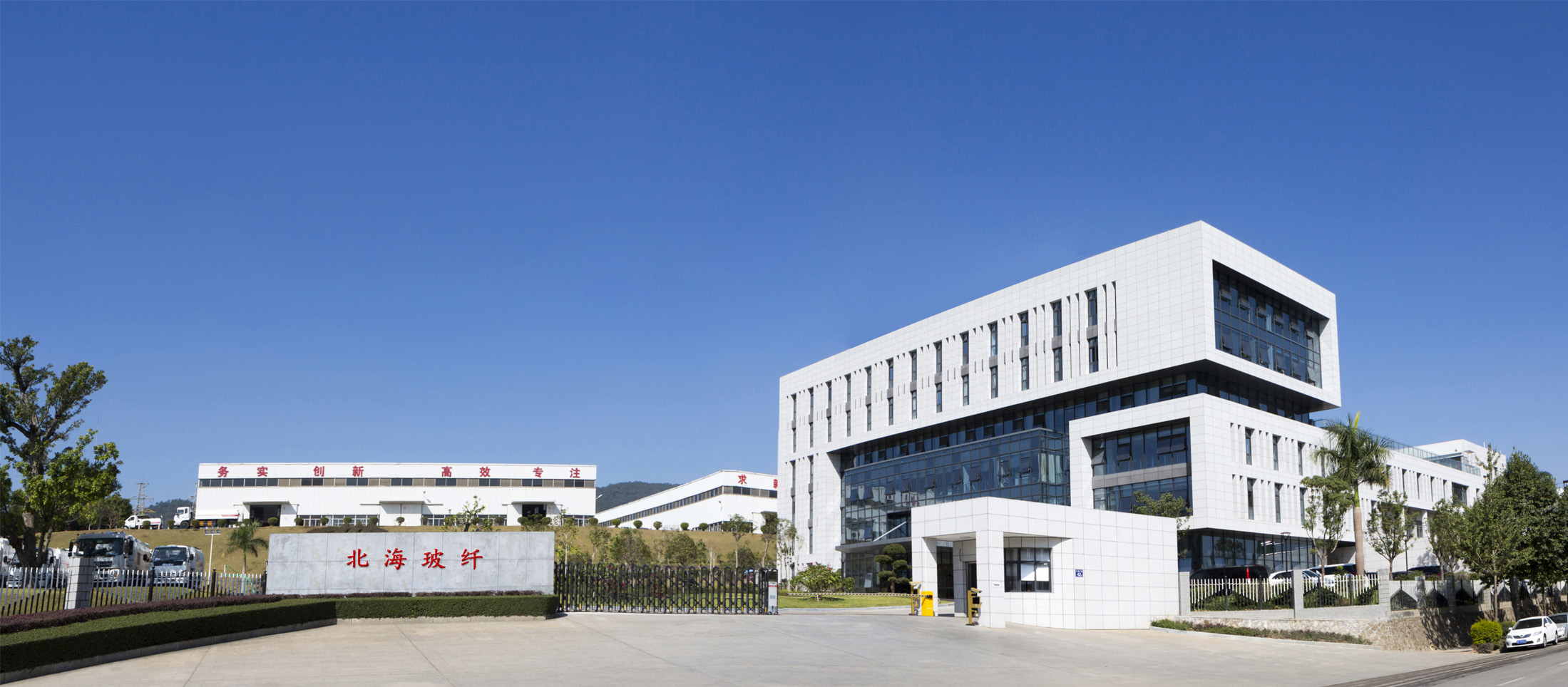

About China Beihai Fiberglass
China Beihai Fiberglass Co., Ltd. has 3 factories with 2100 workers specialize in producing Fiberglass products in China.
The company is located in the beautiful scenery of Jiangxi’an County, with more than 20 years of experience in the production of composite materials, our products are exported to Southeast Asia, the Middle East, Eastern Europe, South America, North America and other large overseas markets.
And our company is not only a phenolic fiberglass molding compound manufacturer, but also a manufacturer of fiberglass for 21 years, so we eliminate the raw material purchasing step in the production of phenolic fiberglass molding compound, which results in lower price, faster manufacturing time and guaranteed quality.
Professional, enthusiastic and reliable Phenolic Molding specialists
I have 15 years of experience in the industry, which allows me to quickly understand your needs and develop the most suitable procurement plan for you.
About China Beihai Fiberglass
China Beihai Fiberglass Co., Ltd. has 3 factories with 2100 workers specialize in producing Fiberglass products in China.
The company is located in the beautiful scenery of Jiangxi’an County, with more than 20 years of experience in the production of composite materials, our products are exported to Southeast Asia, the Middle East, Eastern Europe, South America, North America and other large overseas markets.
And our company is not only a phenolic fiberglass molding compound manufacturer, but also a manufacturer of fiberglass for 21 years, so we eliminate the raw material purchasing step in the production of phenolic fiberglass molding compound, which results in lower price, faster manufacturing time and guaranteed quality.
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
Mold temperature 155 degrees, plus or minus 5 degrees. Pressure at 18 ~ 20 MPa. Holding time, every millimeter thick by 1 minute to see the appearance as long as not red or white (red is a little longer, white is a little shorter) preheating material, 80 ~ 90 degrees in the oven, according to 1 ~ 3 minutes the material softens back to prevail good plus material. According to the actual pressure can be slightly adjusted.

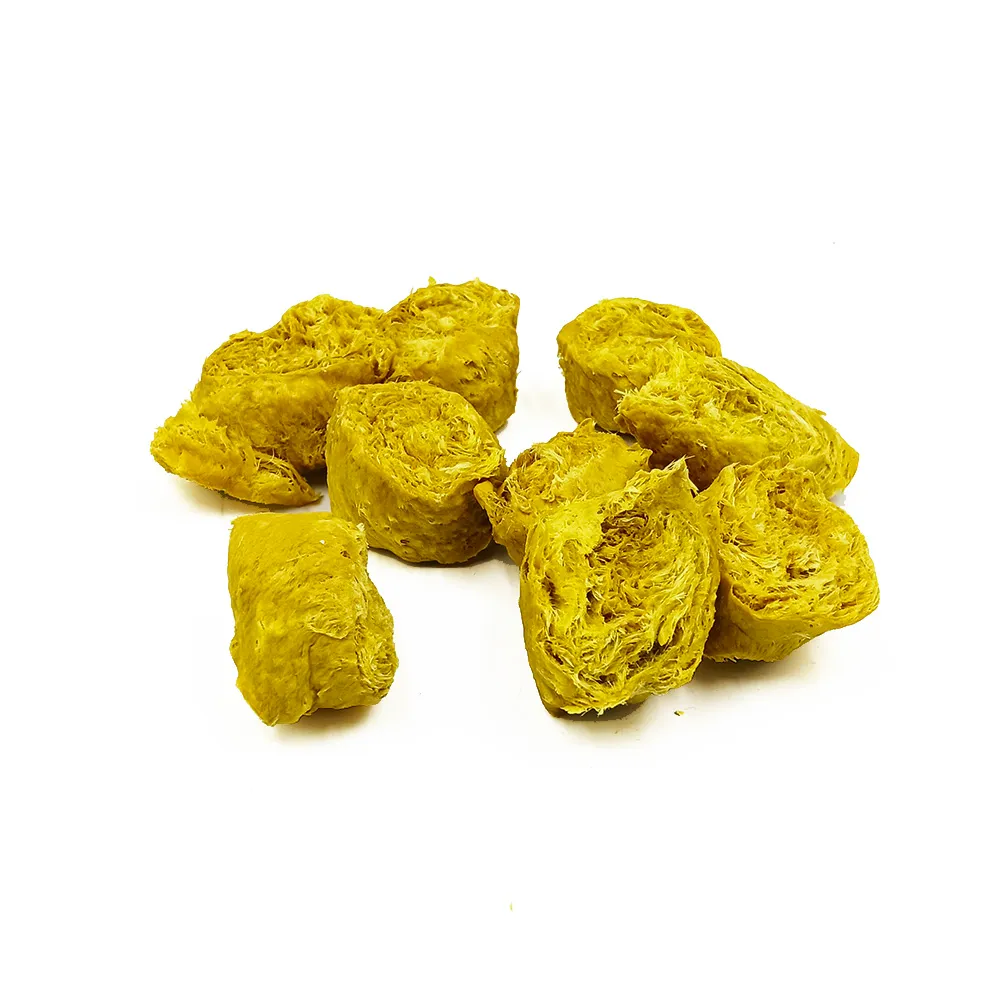

The strength of the block is a little less than the strength of the bulk, the finished product is larger with the block, easy to add material, good fluidity. Block material is easy to crack. 1kgs or more big products use block material, 1kgs or less small products use pellet material.

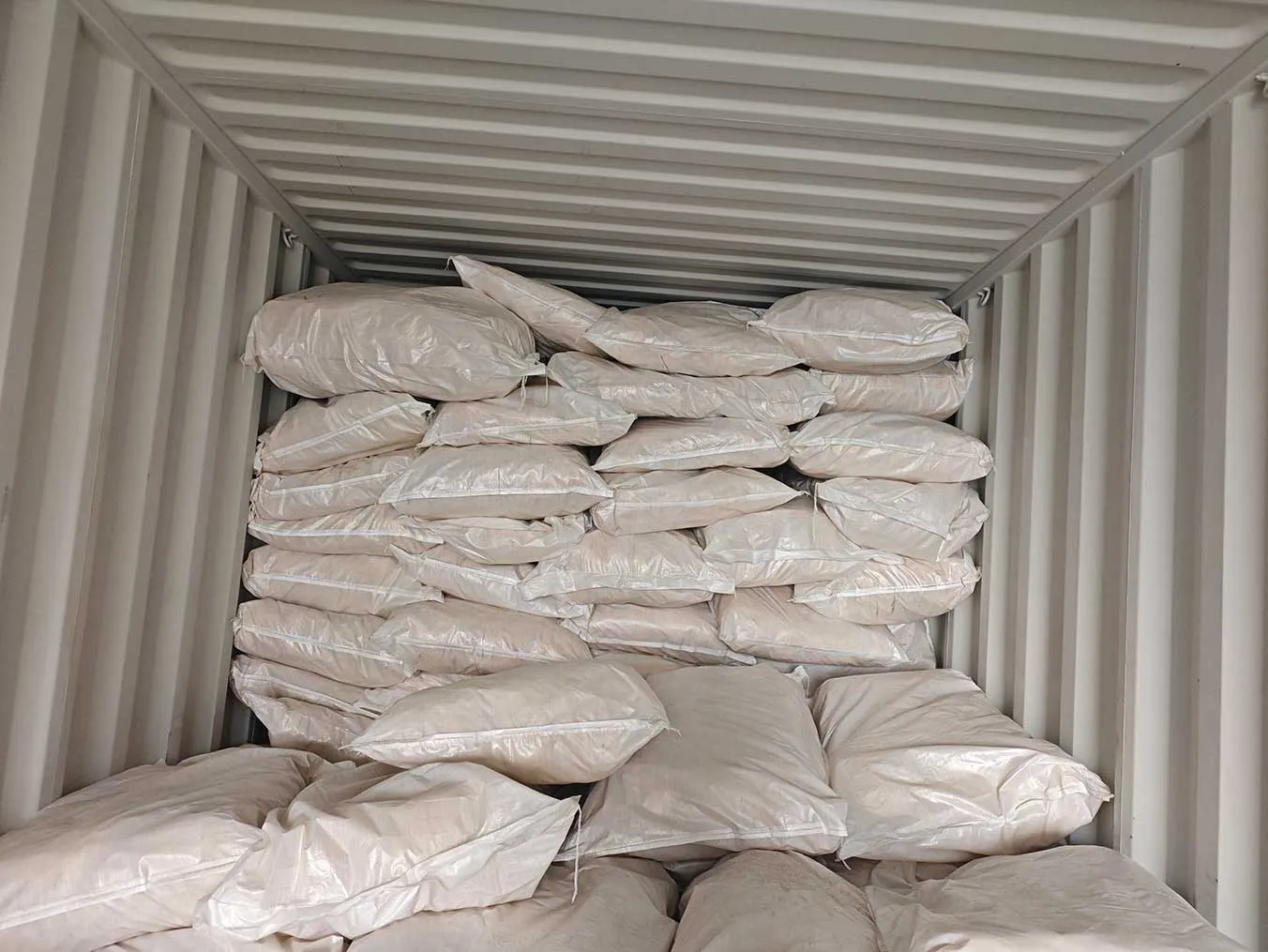

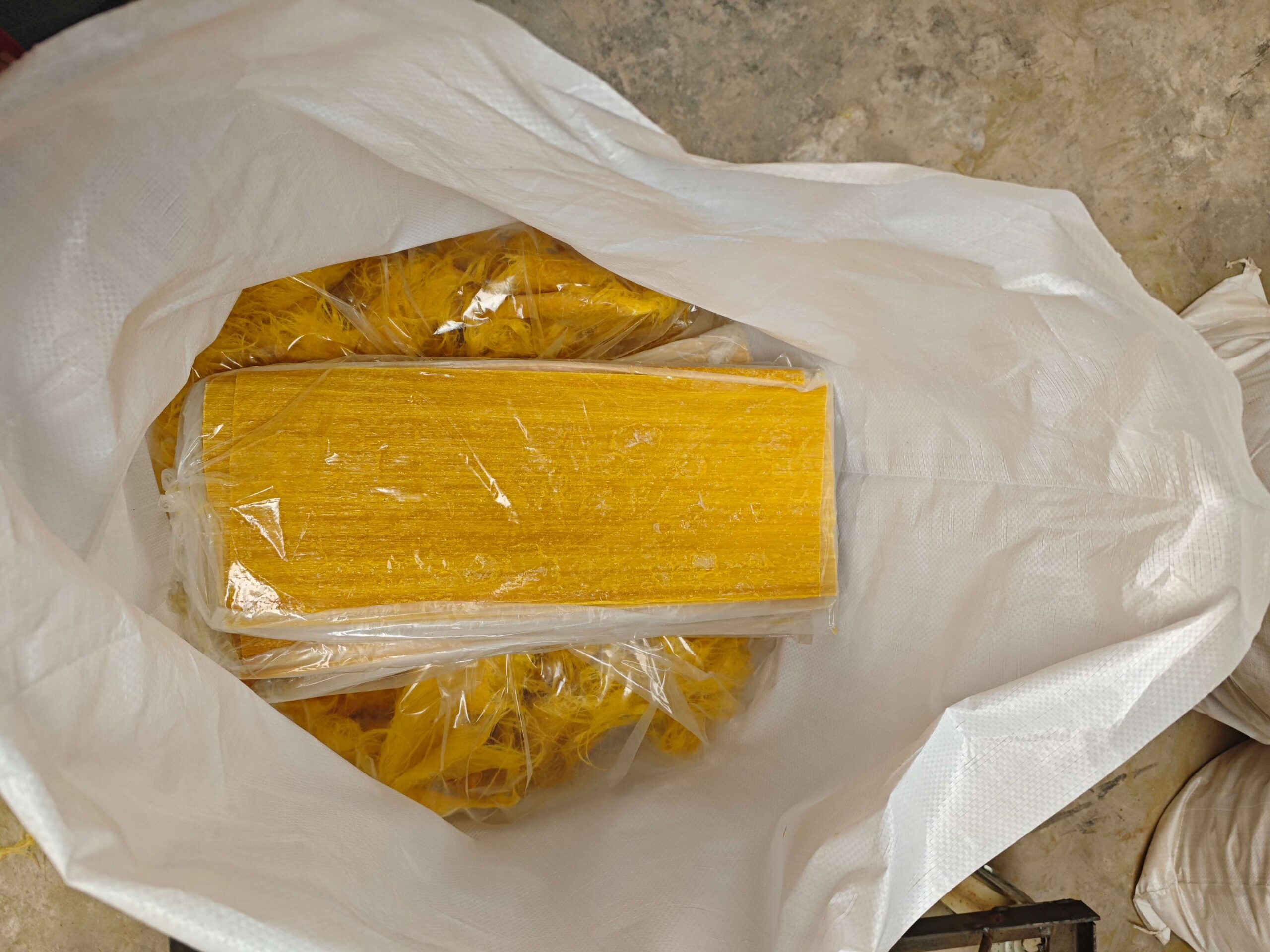

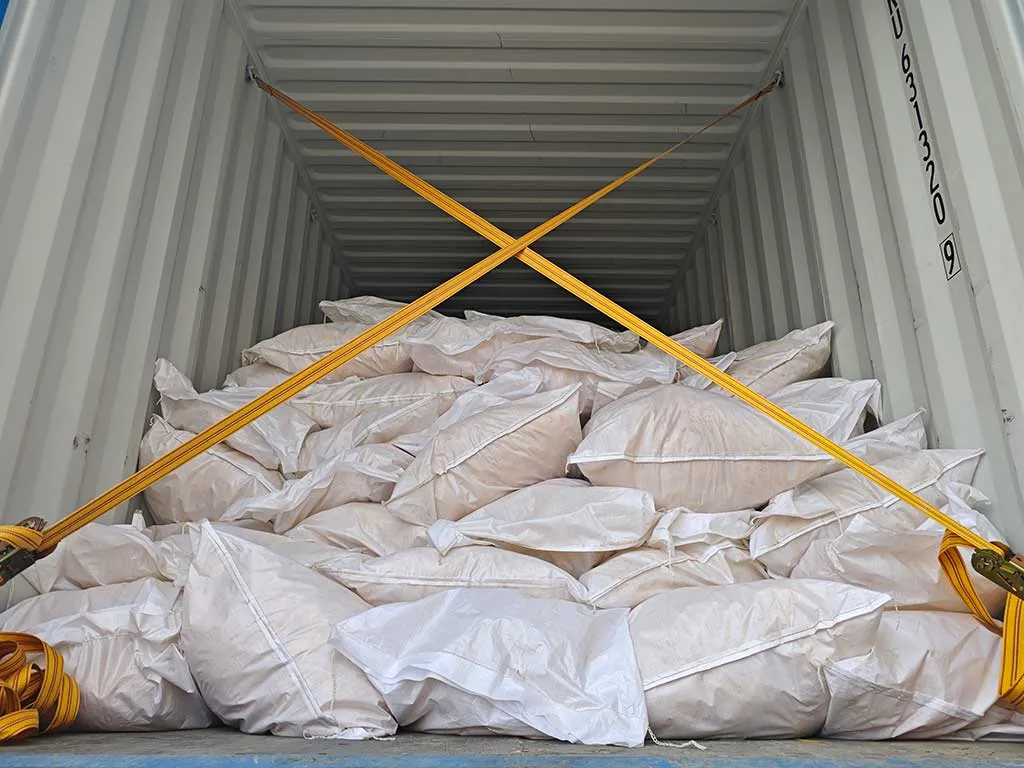

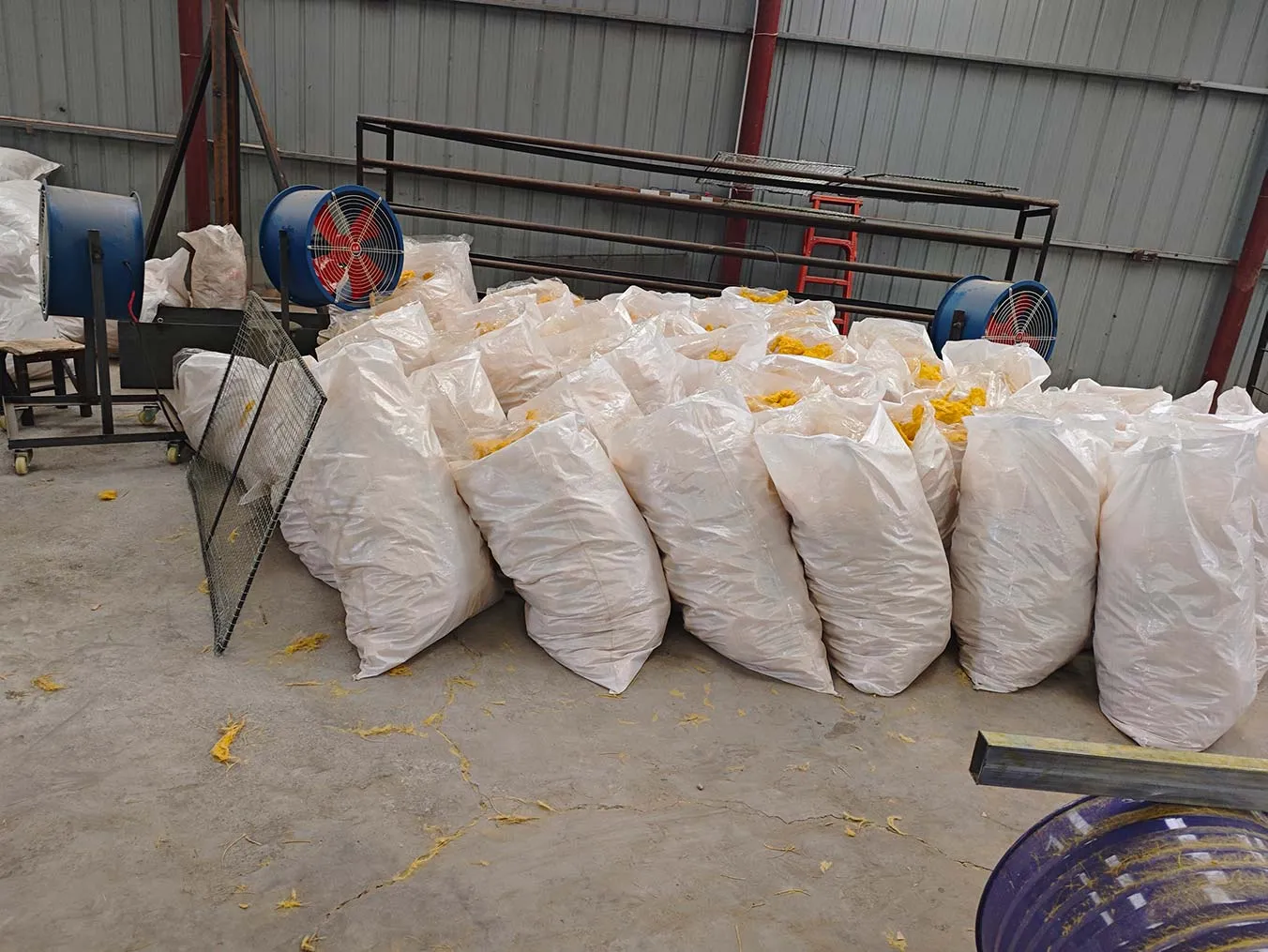

Carton+Woven Bag+Pallet
1 week – 2 weeks
Air, Express, Rail
Common Questions
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
Mold temperature 155 degrees, plus or minus 5 degrees. Pressure at 18 ~ 20 MPa. Holding time, every millimeter thick by 1 minute to see the appearance as long as not red or white (red is a little longer, white is a little shorter) preheating material, 80 ~ 90 degrees in the oven, according to 1 ~ 3 minutes the material softens back to prevail good plus material. According to the actual pressure can be slightly adjusted.
The strength of the block is a little less than the strength of the bulk, the finished product is larger with the block, easy to add material, good fluidity. Block material is easy to crack. 1kgs or more big products use block material, 1kgs or less small products use pellet material.
Carton+Woven Bag+Pallet
1 week – 2 weeks
Air, Express, Rail
